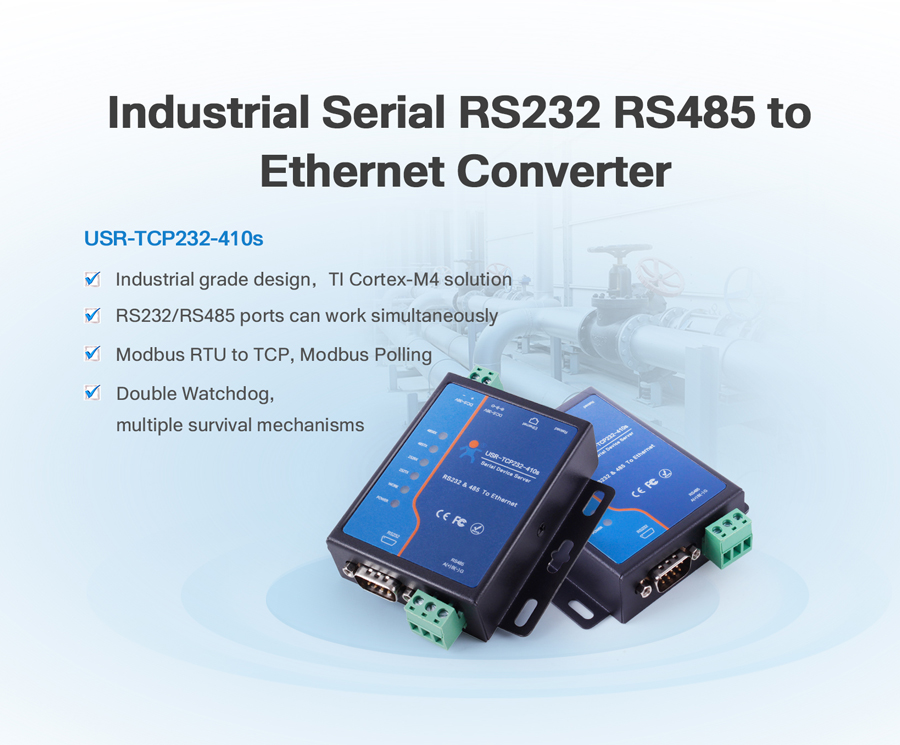

Industrial RS232/RS485 Modbus to Ethernet Converter - USR-TCP232-410S

‹ ›

Industrial RS232/RS485 Modbus to Ethernet Converter - USR-TCP232-410S - Power Adapter and Serial Cable Included

Make: USR IOT
SKU: 03256
Availability: IN STOCK

0 reviews | Write a review

₹3,468.02 inc. GST
Ex GST: ₹2,939.00

Qty:

Add to Wish List Add to Compare

Additional Info

Prices shown are Including GST.

B2B GST Credit Available.

Economy shipping at flat ₹59.

Free shipping on value > ₹2499.

Whatsapp Support @+917231066325

Estimated Delivery time?

Manufacturing Services

Tags: RS232, RS485, Modbus, Modbus to Ethernet, USR IOT, USR-TCP232-410

Description Reviews (0)

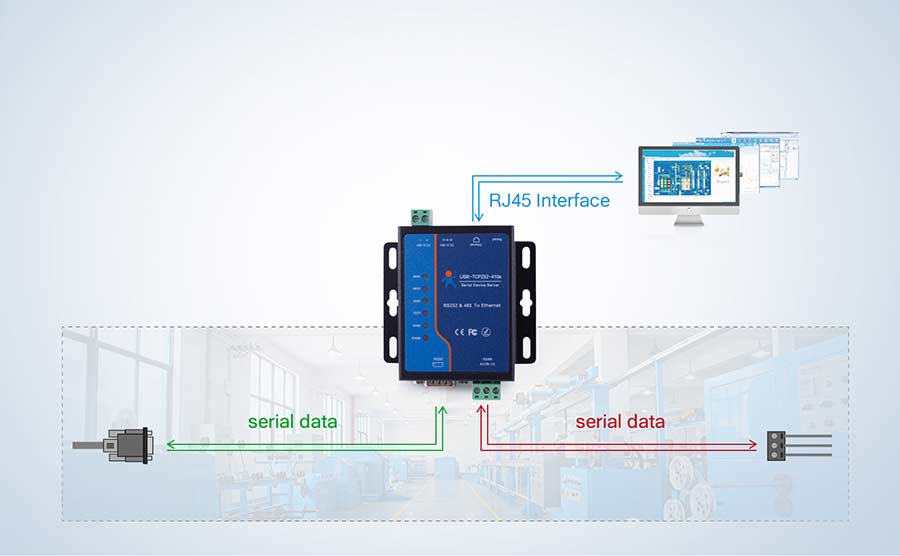

Modbus to Ethernet Converter USR-TCP232-410S can realize bi-directional transparent transmission between RS232/RS485 and Ethernet. RS232/RS485 ports can work at same time, not affecting each other.

Based on TI Cortex M4 Solution, signal processing more efficient and reliable. Equipped with optimized TCP/IP protocol stack, stable and reliable, Modbus to Ethernet converters USR-TCP232-410S can realize bi-directional transparent transmission efficiency. Work Temp: -40 ~85C, Supports hardware watchdog to keep it work stable.

Modbus to Ethernet converters USR-TCP232-410S support 5 work modes: TCP Server, TCP Client, UDP Client, UDP Server and https Client. Configure simply and it can realize data transmission.When works as a TCP Client, it will automatically send pre-registered packets for TCP Server to identify this TCP network. Network+Serial port heartbeat packet+Keep Alive, maintain heartbeat connection with device terminals and servers actively, ensure the stability of the system.

Resources :

download [User Manual]USR-TCP232-410s-User-Manual-V1.1.1.02

download [User Manual] USR-TCP232-410S Quick Start Guide

download [Datasheet] USR-TCP232-410s Datasheet

download [Certificate] ROHS2.0-Certificates-For-Serial-Etherent

download [Certificate] M4 Series CE FCC ROHS WEEE Certificate

download [Certificate] USR-TCP232-410s KCC Certificate

download [Socket_Demo] Socket_Demo.zip [2.68MB]

download [Config Protocol] E45&M4 Series Config Protocol V1.4 [2MB]

download [USR-VCOM] VCOM_Setup_V4.0.4.6.exe

download [USR-TCP-Test] USR-TCP232-Test-V1.3

download USR-TCP232-M4&E45 Setup V2.1.2.220

download USR-VCOM_V3.7.2.529_Setup

System Information
Processor	Cortex-M4
Basic Frequency	120MHz
Flash	512K byte
Ethernet
Port Number	1
Interface Standard	RJ45
Rate	10/100 Mbps MDI/MDIX, auto switch between cross and direct connection
Protection	2KV electromagnetism isolation, shell insulation blocking
Network Protocol	IP, TCP, UDP, DHCP, DNS, https, ARP, ICMP, Web socket, httpsd client
Receive Buffer	Max 16k bytes buffer
Serial
Port Number	2 (1RS-232, 1RS-485, can work at the same time)
Interface Standard	RS-232: DB9 pin type, RS-485: 3 wire (A+, B-, G)
Data Bits	5, 6, 7, 8
Stop Bit	1, 2
Check Bit	None, Even, Odd, Space, Mark
Baud Rate	RS-232: 600 bps ~ 230K bps, RS-485: 600 bps ~ 1M bps
Flow Control	RTS/CTS
Buffer	Send and receive 2k bytes respectively
Protection	RS-485: anti-static 2KV, lightning protection
RS-485 Pull-up and Pull-Down Resistor	2.2 KΩ
Software
Virtual Serial（USR-VCOM）	Windows 2000 or higher (32 bit/64 bit)
Configuration	Built-in webpage, computer set-up software, serial command
Basic Parameter
Size	80 x 62 x 24 mm
Operating Temp.	-40 ~ 85°C
Storage Temp.	-45 ~ 105°C, 5 ~ 95% RH
Input Voltage	DC 5 ~ 36V
Working Current	86.5mA(aver)@ 5V 44.3mA(aver)@ 12V
Power	<1W
More
Certificate	CE,FCC,ROHS
Warranty	2 years
Accessory	5V1A high-quality power supply, serial line, cable
