SX1302 LoRaWAN Gateway HAT for Raspberry Pi, SX1302 868M EU868, GNSS Module
Make: WaveShare Electronics Co.
SKU: 22610
Availability: IN STOCK

₹9,168.60 inc. GST
Ex GST: ₹7,770.00
Qty:



Additional Info
  • Prices shown are Including GST.
  • B2B GST Credit Available.
  • Economy shipping at flat ₹59.
  • Free shipping on value > ₹2499.
  • Whatsapp Support @+917231066325
  • Estimated Delivery time?
  • Manufacturing Services

  •

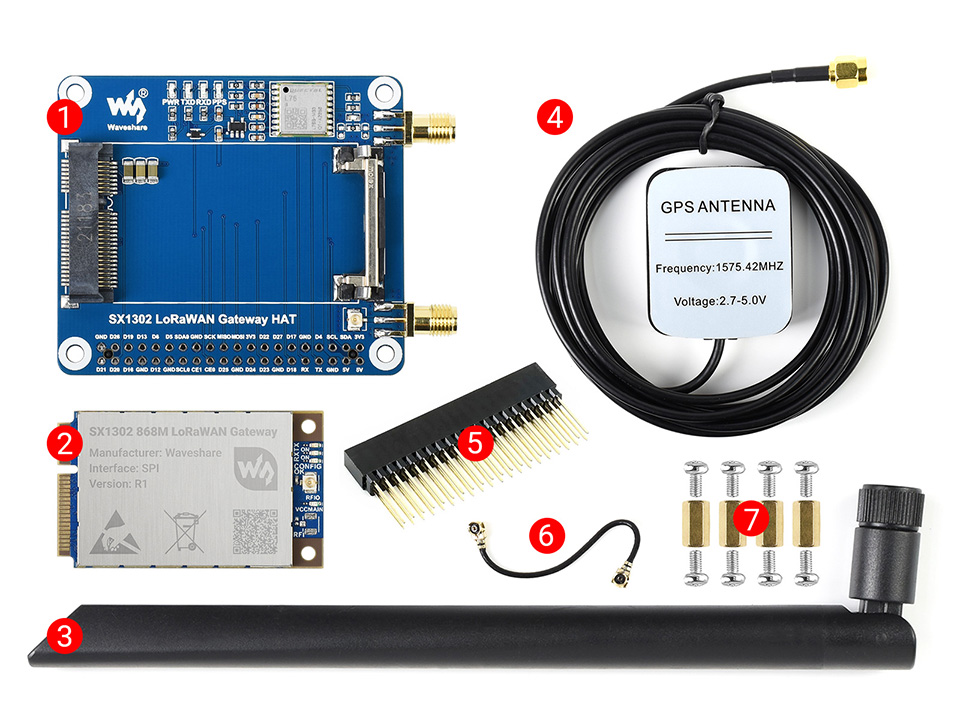

    Introduction

    This is a communication HAT for Raspberry Pi with LoRaWAN protocol support, which incorporates the core LoRa gateway module SX1302 868M LoRaWAN Gateway. It has lots of advantages including long-range transmission, concurrent communication, large capacity node, and high receiving sensitivity. There are L76B GNSS module and Mini-PCIe socket on the baseboard for easy integration, along with our rich development resources, you can attach it to Raspberry Pi and build the LoRa network fast.

    User Resources

    Features

    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
    • Incorporate L76B module with GPS/BD support, Gateway module for providing accurate clock and location info
    • Comes with development resources and manual (example in C)
    • Integrates Semtech SX1302 normal band and SX1250 radio RF frond-end chip, EU868 band
    • Onboard PA and LNA, features 26dBm emit power and -141dBm high sensitivity receiving gain
    • 10x signal channel supports multiple nodes concurrent communication and FEC (Forward Error Correction) algorithm
    • Supports SF5~SF12 spreading factor, 19Kbps MAX (SF5/BW125KHz) data rate
    • Utilizing SPI communication protocol and standard Mini-PCIe socket, for easy integration into sorts of embedded systems

    Specification

      LORA GATEWAY GNSS MODULE
    Power supply 5V
    Fequency range EU868 (863-870MHz) GPS L1 (1575.42MHz)
    BD2 B1 (1561.098MHz)
    Positioning accuracy - < 2.5m CEP
    Modulation LoRa/(G)FSK -
    Emit power > 26dBm@5V -
    Receiving sensitivity -141dBm@125KHz/SF12
    -121dBm@125KHz/SF5
    acquisition: -148dBm
    tracking: -163dBm
    re-acquisition: -160dBm
    Overall power consumption emitting: 710mA@5V GPS on
    receiving: 99mA@5V GPS on
    sleep: 41mA@5V GPS off
    Communication bus SPI, I2C UART
    External connector Mini-PCIe -
    Operating temperature -40~85℃
    Dimensions 50.95 x 30mm
