USR-W630 Industrial RS232/RS485 to WiFi and 2 Port Ethernet Converter
Make: USR IOT
SKU: 03609
Availability: IN STOCK

₹4,482.82 inc. GST
Ex GST: ₹3,799.00
Qty:



Additional Info
  • Prices shown are Including GST.
  • B2B GST Credit Available.
  • Economy shipping at flat ₹59.
  • Free shipping on value > ₹2499.
  • Whatsapp Support @+917231066325
  • Estimated Delivery time?
  • Manufacturing Services

  •

    USR-W630 Industrial RS232/RS485 to WiFi and 2 Port Ethernet Converter

    Industrial serial to WiFi and Ethernet converter 1 Port WiFi to serial converter USR-W630, which can realize bidirectional transparent transmission between RS232/RS485 and WIFI, WiFi and Ethernet, Serial and Ethernet.

    • Two Ethernet ports: 1x LAN, 1x LAN/WAN. Two Ethernet ports (WAN and LAN) can be worked simultaneously
    • Modbus gateway: Modbus TCP to Modbus RTU in bi-directional; Modbus Polling
    • Electrostatic protection
    • Hardware WatchDog, 24 hours stable operation.
    • Timeout reset function, timing reset function.
    • Supports identity packet function.
    • Supports heartbeat packet function.
    • Websocket function
    • Supports Web Server, setup software, serial/network AT command to configure module.
    • Hardware reload.
    • WIFI Standard: 2.4GHz 802.11b/g/n
    • Work Mode:TCP Server/TCP Client/UDP Server/UDP Client/https Client mode.
    • Supports AP, STA, AP+STA.
    • it supports Modbus TCP and Modbus RTU mutual conversion.

    Package Includes :

    • 1x USR-W630 Main Unit
    • 1x Power Supply Adapter
    • 1x WiFi Antenna
    • 1x RS232 Cable




    USR-W630 supports network heartbeat packet and serial heartbeat packet. The network heartbeat packet notifies the server that it is in an active state, and it maintains the normal connection with the server by continuously sending the heartbeat packet.Serial port heartbeat packet notifies the serial device that USR-W630 is in an active state, and takes the initiative to grab the sensor data can not be initiative to push.


    Downloads


    Ethernet
    Port Number 2 ethernet ports: 1 x WAN, 1 x WAN/LAN
    Buffer Rx/TX: Max 16K bytes
    Protection 2 KV Electromagnetic isolation for Ethernet port
    Network Protocol IP/TCP/UDP/DHCP/DNS/https/ ARP/ICMP/Web socket/httpsd client
    Speed Rate 10/100 Mbps, MDI/MDIX
    Wi-Fi
    Certificate FCC/CE
    WiFi 802.11 b/g/n
    Frequency Range 2.412GHz-2.484GHz
    Transmit Power 802.11b: +19dBm(Max)
    802.11g: +18dBm(Max)
    802.11n:+17dBm(Max)
    Receive Sensitivity 802.11b: -89dBm
    802.11g: -81dBm
    802.11n: -73dBm
    Hardware
    Interface Standard RS232:300~460.8Kbps
    RS485:300~230.4Kbps
    Input Voltage DC5~36V
    Operating Temp. -40℃~ 85℃
    Storage Temp. -40℃~ 125℃
    Size 86*82.5*25mm(L*W*H)
    Software
    Network Mode Station/AP/AP+Station
    Security WEP/WPA-PSK/WPA2-PSK
    Encryption WEP64/WEP128/TKIP/AES
    Work Mode Transparent transmission / serial AT command/
    https Client、Modbus TCP<=>Modbus RTU
    Setting Command AT+command
    Networking Protocol TCP/UDP/ARP/ICMP/DHCP/DNS/https
    Max. Client Number in TCP Server Mode 24
    Configuration Web sever+ AT command
    More
    Warranty 2 years

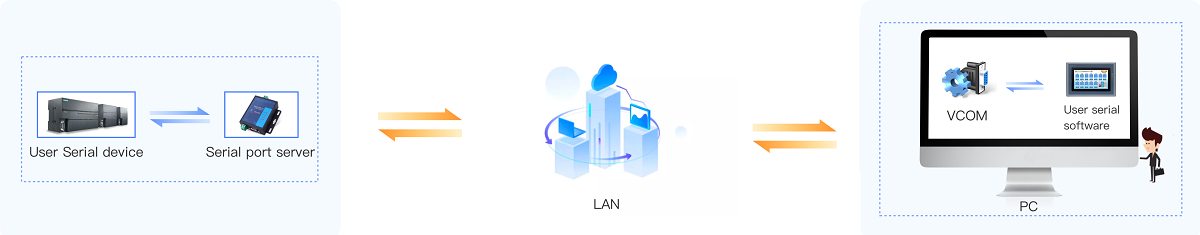

    lan communication

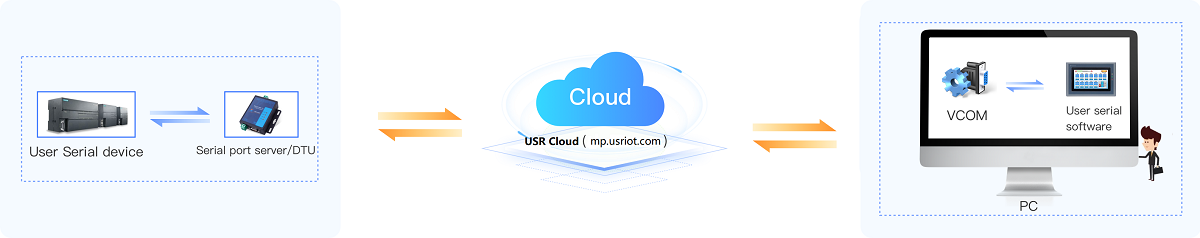

    Communication across public networks
